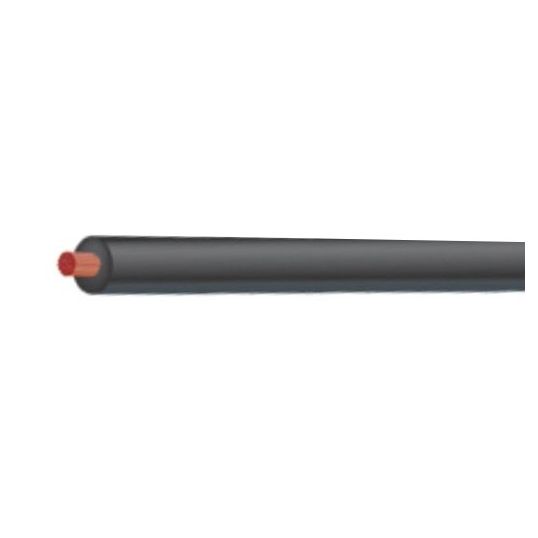

Tycab Automotive Cable Single Insulated 1 Core 4mm V90 PVC Red/Black
Description
Automotive Cable, Single Insulated, 1 Core, 1.84 mm, 4 mm, Oxygen Free Plain Copper, 28 Amp, 23/0.32 mm Strands, 2.6 mm Overall Diameter, 0.4 mm Insulation Thickness, 10.1 Ohm/km Conductor Resistance, V-90 PVC Insulation, Unsheathed, Red/Black Insulation, 30 to 70 deg C
Key Specifications
| Barcode (EAN-13) |
9320943032939
|
|---|---|
| SKU |
TYCASC12603-RDBK-30
|
| Brand |
Tycab
|
| Product Type |
Automotive Cable Single Insulated
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 30 |
|---|---|
| UNSPSC Class | 26121800 |
| UOM | MTR |
| Vendor Product | ASC12603-RDBK-30 |
| Conductor Resistance | 10.1 Ohm/km |
| Conductor Size (mm) | 4.0 mm |
| Conductor Size | 1.84 mm |
| Conductor Type | Oxygen Free Copper |
| Current | 28 Amp |
| Overall Diameter | 2.6 mm |
| Insulation Colour | Red/Black |
| Insulation Material | V-90 PVC |
| Number of Cores | 1 Core |
| Insulation Thickness | 0.4 mm |
| Sheath Material | Unsheathed |
| Stranding | 23/0.32 mm |
| Temperature | 30 to 70 deg C |
