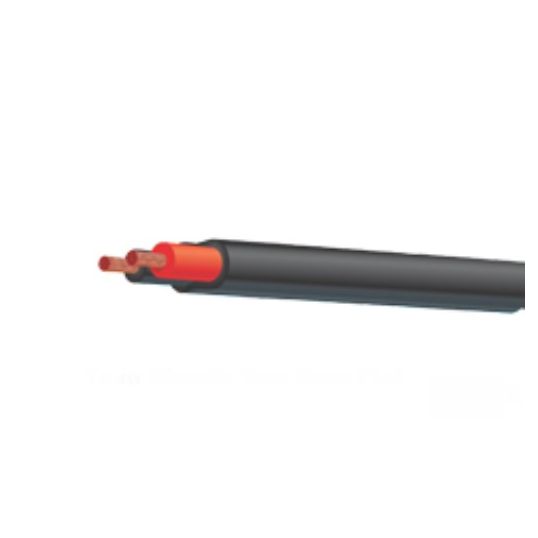

Tycab 2.9mm 2 Core Black Figure 8 Trailer Cable Double Insulated PVC/PVC
Description
Trailer Cable, Figure 8, Double Insulated, 2.9 mm, Oxygen Free Copper, 50-120 Volt, 29 Amp, 2 Core, 36/0.32 mm Strands, 4.5 mm x 7.4 mm Overall Diameter, 0.4 mm Insulation Thickness, 0.7 mm Sheath Thickness, 6.4 Ohm/km Conductor Resistance, Red/Black Core, V-90 PVC Insulation, 5V-90 PVC Sheath, Black Sheath, 30 to 70 deg C, AS/NZS 1125 AS/NZS 3808
Key Specifications
| Barcode (EAN-13) |
9320943009603
|
|---|---|
| SKU |
TYCAWC24103-BK-500
|
| Brand |
Tycab
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 500 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | AWC24103-BK-500 |
| Conductor Resistance | 6.4 Ohm/km |
| Conductor Size | 2.9 mm |
| Core Colours | Red/Black |
| Conductor Type | Oxygen Free Copper |
| Current | 29 Amp |
| Insulation Material | V-90 PVC |
| Number of Cores | 2 Core |
| Insulation Thickness | 0.4 mm |
| Overall Diameter | 4.5 mm x 7.4 mm |
| Sheath Colour | Black |
| Sheath Thickness | 0.7 mm |
| Sheath Material | 5V-90 PVC |
| Standards | AS/NZS 1125 AS/NZS 3808 |
| Stranding | 36/0.32 mm |
| Temperature | 30 to 70 deg C |
| Voltage | 50-120 Volt |
