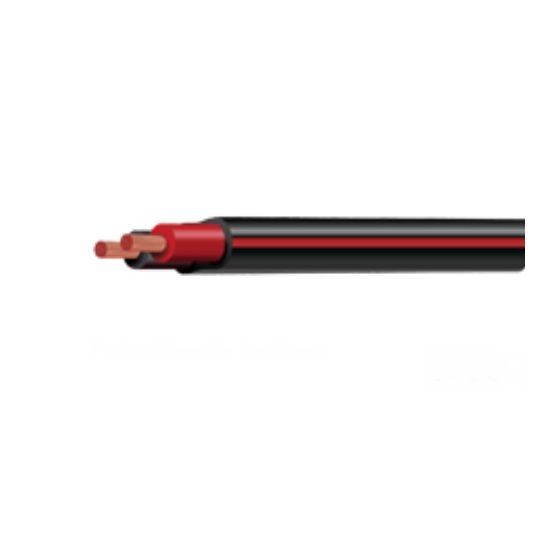

Tycab Automotive Cable Battery & Starter Double Insulated 2 Core Figure 8 8mm PVC/PVC Black/Red
Description
Automotive Cable Battery & Starter Figure 8 Double Insulated, 7.71 mm, 8 mm Conductor Size (mm), Oxygen Free Copper, 50-120 Volt, 59.2 Amp, 2 Core, 96/0.32 mm Strands, 7.1 mm x 12.5 mm Overall Diameter, 0.9 mm Insulation Thickness, 0.8 mm Sheath Thickness, 2.4 Ohm/km Conductor Resistance, Red/Black Core, V-90 PVC Insulation, V-90 PVC Sheath, Black/Red Sheath, 30 to 70 deg C, AS/NZS 1125 AS/NZS 3808
Key Specifications
| Barcode (EAN-13) |
9320943139324
|
|---|---|
| SKU |
TYCAWC296032-BKRD-30
|
| Brand |
Tycab
|
| Product Type |
Automotive Cable Battery & Starter Figure 8 Double Insulated
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 30 |
|---|---|
| UNSPSC Class | 26121800 |
| UOM | MTR |
| Vendor Product | AWC296032-BKRD-30 |
| Conductor Resistance | 2.4 Ohm/km |
| Conductor Size | 7.71 mm |
| Conductor Type | Oxygen Free Copper |
| Core Colours | Black/Red |
| Current | 59.2 Amp |
| Overall Diameter | 7.1 mm x 12.5 mm |
| Insulation Material | V-90 PVC |
| Number of Cores | 2 Core |
| Insulation Thickness | 0.9 mm |
| Sheath Colour | Black/Red |
| Sheath Thickness | 0.8 mm |
| Sheath Material | V-90 PVC |
| Stranding | 96/0.32 mm |
| Standards | AS/NZS 1125 AS/NZS 3808 |
| Voltage | 50-120 Volt |
| Temperature | 30 to 70 deg C |
