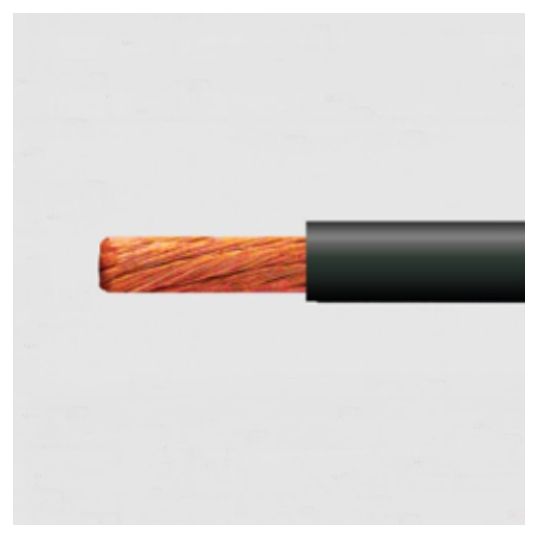

Tycab Flexible Power Cable 1 Core 16mm 0.6/1kV Plain Copper V90HT PVC Black

chevron-left

Description

chevron-down
Flexible Cable, 16 mm, Class 6 Oxygen Free Copper, 0.6-1 kV, 69 Amp, 1 Core, 511/0.2 mm Strands, 7.3 mm Overall Diameter, Static 29.2 mm Bend Radius, 1 mm Insulation Thickness, 1.21 Ohm/km Conductor Resistance, V-90HT PVC RoHS Compliant Insulation, Black Insulation, Unsheathed Sheath, 75 deg C, AS/NZS 3008.1.1:2009 AS/NZS 3008

Key Specifications

chevron-down
Barcode (EAN-13)
9320943017639
SKU
TYCZBD151102-BK-100
Brand
Tycab
Product Type
Flexible Cable

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Standard Pack Size 100
UNSPSC Class 26121500
UOM MTR
Vendor Product ZBD151102-BK-100
Bend Radius Static 29.2 mm
Conductor Resistance 1.21 Ohm/km
Conductor Size 16 mm
Conductor Type Class 6 Oxygen Free Copper
Current 69 Amp
Insulation Colour Black
Insulation Material V-90HT PVC RoHS Compliant
Insulation Thickness 1 mm
Overall Diameter 7.3 mm
Number of Cores 1 Core
Sheath Material Unsheathed
Standards AS/NZS 3008.1.1:2009 AS/NZS 3008
Stranding 511/0.2 mm
Temperature 75 deg C
Voltage 0.6-1 kV
