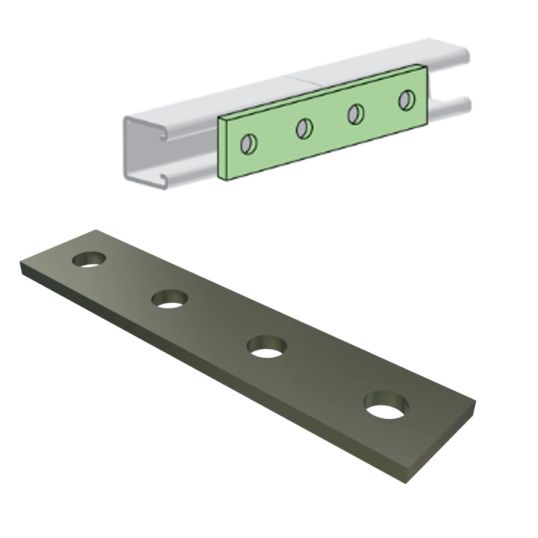

Unistrut Strut Joining Plate Flat 4 Hole L186mm W40mm Steel Hot-Dip Galvanised
Description
Strut Joining Plate Flat, 4 Hole, 14 mm Hole Diameter, 21 mm From End 48 mm On Center Hole Spacing, For Use With 41 mm Width Channel/Strut, Steel, Hot Dip Galvanised, 186 mm Length, 40 mm Width, 2.5 Safety Factor
Key Specifications
| Barcode (EAN-13) |
932148051769
|
|---|---|
| SKU |
UNSP1067H
|
| Brand |
Unistrut
|
| Product Type |
Strut & Channel Joiners
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 30101800 |
| UOM | EA |
| Vendor Product | 4000915 |
| For Use With | 41 mm Width Channel/Strut |
| Finish | Hot Dip Galvanised |
| Hole Diameter | 14 mm |
| Hole Spacing | 21 mm From End - 48 mm On Center |
| Material | Steel |
| Number of Holes | 4 |
| Please Note | 2.5 Safety Factor |
| Width | 40 mm |
