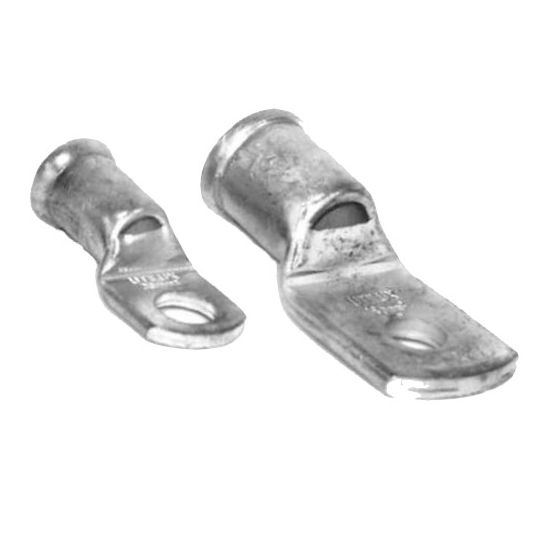

Utilux Crimp Lug Bell Mouth with Inspection Window Copper 150mm M10 Stud 75mm OAL

chevron-left

Description

chevron-down
Crimp Lug, Bell Mouth, with Inspection Window, Copper, 150 mm Conductor, M10 Stud, Flared Barrel, 27mm Barrel, 75mm Overall Length, 1 Hole, Copper Body, Copper Conductor, Tin Electroplated Finish, Number of Strands: 427/0.67, 34mm Lug Width, 32mm Lug Length, Crimping Die: 38-183CU, with Inspection Window

Key Specifications

chevron-down
SKU
UTICG150FLM10/1
Brand
Utilux
Range Name
Bell Mouth Lugs
Product Type
Lugs Bell Mouth

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • The range of flared copper lugs has been designed with the barrel entry flared to enable an easy insertion of multi stranded cables (flexible cable)
  • The range of connectors (from 25 to 185 sq-mm) will ensure most applications for the common flexible cable sizes are covered
  • The flared copper lugs are made from seamless copper tube, electro tin plated and have the cable area clearly marked on the palm of the lug
  • The inspection window on the barrel provides a check that the cable has been fully inserted
  • The flared lugs can be crimped with the standard range of Utilux tooling and hexagonal dies
Standard Pack Size 1
UNSPSC Class 39121400
UOM EA
Vendor Product UTICG150FLM10/1
Barrel Length 27 mm
Barrel Type Flared
Body Material Copper
Conductive Material Copper
Conductor Size 150 mm
Crimping Die 38-183CU
Finish Tin Electroplated
Lug Length 32 mm
Lug Width 34 mm
Number of Holes 1
Number of Strands 427/0.67
Overall Length 75 mm
Please Note with Inspection Window
Stud Size M10 Stud
