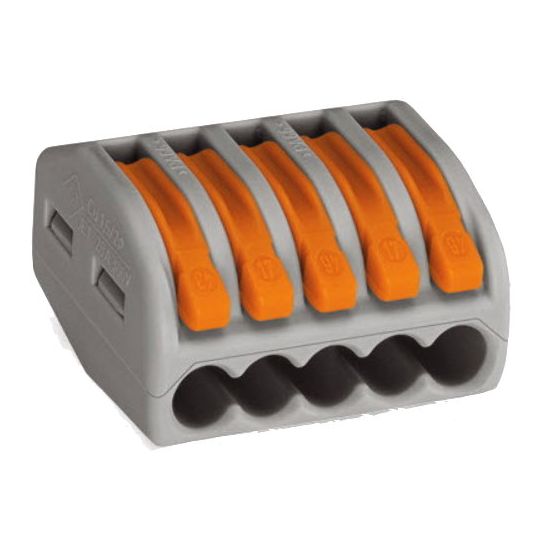

Wago Splicing Connector Compact 5 Pole Cage Clamp with Operating Levers 0.08-2.5mm Grey 40 Pack
Description
Key Specifications
Barcode (EAN-13) |
4044918464956
|
---|---|
SKU |
WAG222415
|
Brand |
Wago
|
Range Name |
Series 222
|
Product Type |
Splice & Bullet Connectors
|
Technical Specifications
Additional Information
Standard Pack Size | 40 |
---|---|
UNSPSC Class | 39121400 |
UOM | BX |
Vendor Product | 222-415 |
Conductive Material | Copper |
Conductor Size | 0.08-2.5mm |
Current Rating | 32 Amp |
Depth | 20.5 mm |
Height | 14.5 mm |
Insulation Colour | Grey |
Min. Breakdown Voltage | 4 kV |
Pack Size | 40 Pack |
Number of Conductors | 5 |
Please Note | with Operating Levers |
Temperature | 40 deg C |
Terminal Type | Cage Clamp |
Voltage Rating | 400 Volt |
Width | 26.6 mm |
Wire Strip Length | 9-10 mm |
