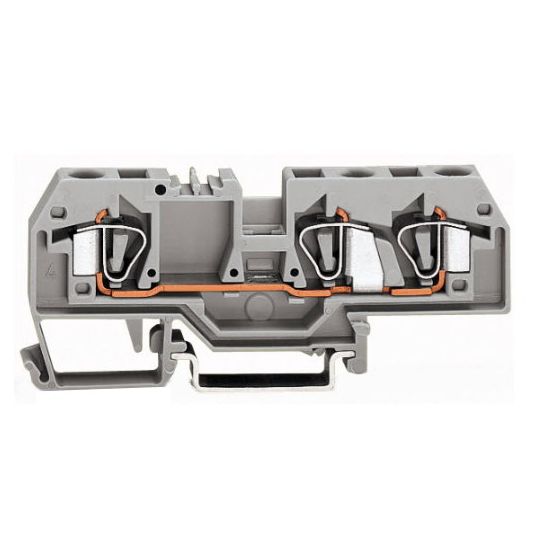

Wago Rail Terminal Block 3 Wire 1 Level 6mm Grey Polyamide 66

chevron-left

Description

chevron-down
Easily, quickly and safely connect conductors with this through terminal block (item number 282-681). Whether for use in industry or building installations, our rail-mount through terminal blocks make it easy to quickly and securely connect electrical conductors. They're perfect for either classic through-wiring or distributing potential, depending on the variant. Our through rail-mount terminal block is rated for 800 V and is designed for use with a rated current of up to 41 A. Conductors can only be connected to this through terminal block if their strip length is between 12 mm and 13 mm. This product features conductor terminals and utilizes CAGE CLAMP®. Our CAGE CLAMP® connection offers a safe and maintenance-free way to connect all types of conductors. You do not need to prepare the conductor in any way, such as crimping ferrules. Depending on the type of conductor, this through terminal block is designed for conductor cross sections ranging from 0.2 sq-mm to 6 sq-mm . It has one level. You can connect a single potential using the three clamping points. The grey housing is made of polyamide (PA66) for insulation. An operating tool is used to operate this through rail-mount terminal block. These through rail-mount terminal blocks are mounted using DIN-35 rails.. Conductors made of copper can be connected thanks to front-entry wiring.

Key Specifications

chevron-down
Barcode (EAN-13)
4044918689151
SKU
WAG282-681
Brand
Wago
Range Name
Cage Clamp Series 282
Product Type
Rail Terminal Blocks

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Standard Pack Size 25
UNSPSC Class 39121400
UOM EA
Vendor Product 282-681
Actuation Type Operating Tool
Colour Grey
Conductor Material Copper
Conductor Size 6.0mm
Current Rating 41 Amp
Depth 8 mm
Fire Load 0.335 MJ
Flammability UL94 V0
Insulation Material Polyamide 66
Height 93 mm
Marking (III / 3) Overvoltage category III / Pollution degree 3
Marking Position Centre
Mounting Method DIN Rail
Number of Conductors 3
Number of Connection Points 3
Number of Potentials 1
Number of Levels 1
Rated Surge Voltage 8 kV
Terminal Type Cage Clamp
Temperature -35 to 85 deg C
Voltage Rating 800 Volt
Width 32.5 mm
Wire Entry Orientation Front
Wire Strip Length 12-13 mm
Wiring Format 3 Conductor Through
