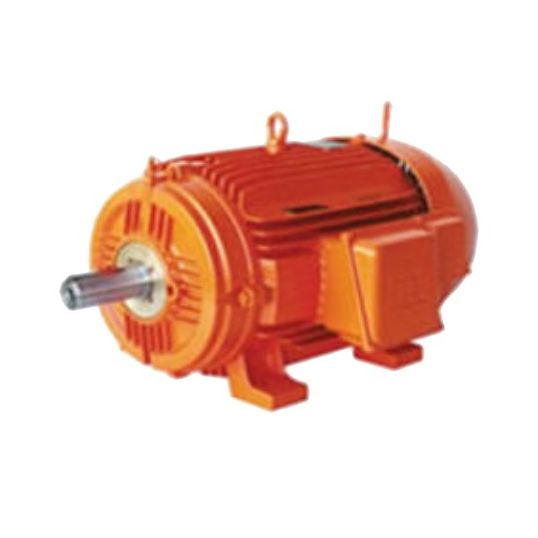

WEG Electric Motor Squirrel Cage Induction Mine Spec 8P 37kW 3Ph 415V 280S/M Frame Foot B3R(E) Mount

chevron-left

Description

chevron-down
Electric Motor Squirrel Cage Induction Mine Spec, 415 Volt AC, 72.7 Amp, 50 HP, 50 Hz, 3 Phase, 740 rpm, 37 kW Output, 8 Pole, IC411-TEFC Enclosure, IP66, Frame: 280S/M, 80 mm Shaft, Rotation: Both (CW and CCW), Power Factor: 0.77, Service Factor: 1.15, Roller Bearing, Direct On Line Starting, Torque: 48.7 kgfm, Duty Cycle: S1, Foot B3R(E) Mounting, Insulation Class: H, Efficiency: 92%, Cast Iron Frame, Carbon Steel SAE 4140 Shaft, -20 to 40 deg C, 1101 mm Length x 751 mm Width x 686 mm Height

Key Specifications

chevron-down
SKU
WEGKTE40BPHEM
Brand
WEG
Range Name
WMining Series
Product Type
Motors SCIM Mine Spec

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • The W22 Mining motors can operate with high efficiency in the severest applications
  • They have special mechanical characteristics that ensure durability, mechanical strength, and robustness in every step of the mining process from extraction and transportation to the ore processing
  • Furthermore, they require low maintenance, significantly reducing undesirable downtime, and providing greater plant availability
  • Totally enclosed fan cooled
Standard Pack Size 1
UNSPSC Class 26101100
UOM EA
Vendor Product KTE40BPHEM
Bearing Type Roller
Current 72.7 Amp
Duty Cycle S1
Efficiency 92%
Frame Size 280S/M
Frame Material Cast Iron
Enclosure Type IC411-TEFC
Frequency 50 Hz
Horsepower 50 kW
Insulation Class Class H
Height 686 mm
IP Rating IP66
Mounting Method Foot
Number Of Poles 8 Pole
Output 37 kW
Phase 3 Phase
Power Factor 0.77
Rotation Both (CW and CCW)
Service Factor 1.15
Shaft Material Carbon Steel SAE 4140
Speed 740 rpm
Shaft Size 80 mm
Starting Method Direct On Line
Temperature -20 to 40 deg C
Torque Rating 48.7 kgfm
Voltage 415 Volt AC
Width 751 mm
