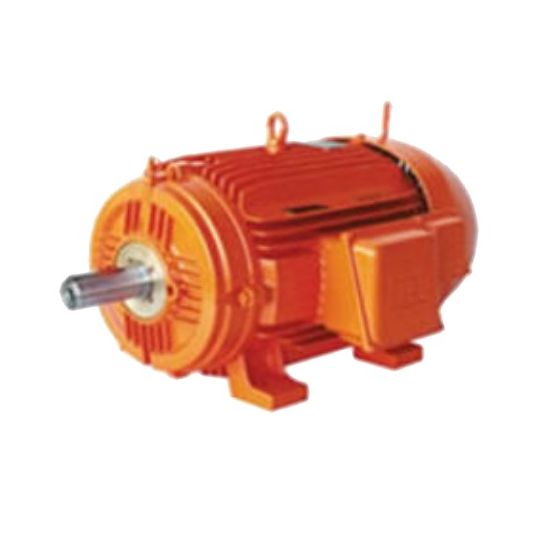

WEG Electric Motor Squirrel Cage Induction Mine Spec 2P 185kW 3Ph 415V 315S/M Frame Foot B3R(E) Mount

chevron-left

Description

chevron-down
Electric Motor Squirrel Cage Induction Mine Spec, 415 Volt AC, 306 Amp, 250 HP, 50 Hz, 3 Phase, 2978 rpm, 185 kW Output, 2 Pole, IC411-TEFC Enclosure, IP66, Frame: 315S/M, 65 mm Shaft, Rotation: Both (CW and CCW), Power Factor: 0.88, Service Factor: 1.15, Roller Bearing, Direct On Line Starting, Torque: 60.5 kgfm, Duty Cycle: S1, Foot B3R(E) Mounting, Insulation Class: H, Efficiency: 95.8%, Cast Iron Frame, Carbon Steel SAE 1040/45 Shaft, -20 to 40 deg C, 1244 mm Length x 839 mm Width x 751 mm Height

Key Specifications

chevron-down
SKU
WEGKTE53PHEM
Brand
WEG
Range Name
WMining Series
Product Type
Motors SCIM Mine Spec

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • The W22 Mining motors can operate with high efficiency in the severest applications
  • They have special mechanical characteristics that ensure durability, mechanical strength, and robustness in every step of the mining process from extraction and transportation to the ore processing
  • Furthermore, they require low maintenance, significantly reducing undesirable downtime, and providing greater plant availability
  • Totally enclosed fan cooled
Standard Pack Size 1
UNSPSC Class 26101100
UOM EA
Vendor Product KTE53PHEM
Bearing Type Roller
Current 306 Amp
Duty Cycle S1
Efficiency 95.8%
Frame Size 315S/M
Frame Material Cast Iron
Enclosure Type IC411-TEFC
Frequency 50 Hz
Horsepower 250 kW
Insulation Class Class H
Height 751 mm
IP Rating IP66
Mounting Method Foot
Number Of Poles 2 Pole
Output 185 kW
Phase 3 Phase
Power Factor 0.88
Rotation Both (CW and CCW)
Service Factor 1.15
Shaft Material Carbon Steel SAE 1040/45
Speed 2978 rpm
Shaft Size 65 mm
Starting Method Direct On Line
Temperature -20 to 40 deg C
Torque Rating 60.5 kgfm
Voltage 415 Volt AC
Width 839 mm
