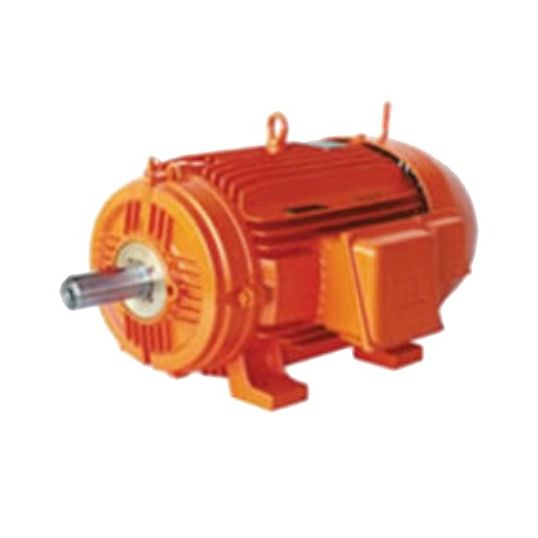

WEG Electric Motor Squirrel Cage Induction Mine Spec 4P 220kW 3Ph 415V 355M/L Frame Foot B3R(E) Mount

chevron-left

Description

chevron-down
Electric Motor Squirrel Cage Induction Mine Spec, 415 Volt AC, 379 Amp, 300 HP, 50 Hz, 3 Phase, 1492 rpm, 220 kW Output, 4 Pole, IC411-TEFC Enclosure, IP66, Frame: 355M/L, 100 mm Shaft, Rotation: Both (CW and CCW), Power Factor: 0.84, Service Factor: 1.15, Roller Bearing, Direct On Line Starting, Torque: 144 kgfm, Duty Cycle: S1, Foot B3R(E) Mounting, Insulation Class: H, Efficiency: 96.2%, Cast Iron Frame, Carbon Steel SAE 4140 Shaft, -20 to 40 deg C, 1482 mm Length x 956 mm Width x 885 mm Height

Key Specifications

chevron-down
SKU
WEGKTE56PHEM
Brand
WEG
Range Name
WMining Series
Product Type
Motors SCIM Mine Spec

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • The W22 Mining motors can operate with high efficiency in the severest applications
  • They have special mechanical characteristics that ensure durability, mechanical strength, and robustness in every step of the mining process from extraction and transportation to the ore processing
  • Furthermore, they require low maintenance, significantly reducing undesirable downtime, and providing greater plant availability
  • Totally enclosed fan cooled
Standard Pack Size 1
UNSPSC Class 26101100
UOM EA
Vendor Product KTE56PHEM
Bearing Type Roller
Current 379 Amp
Duty Cycle S1
Efficiency 96.2%
Enclosure Type IC411-TEFC
Frame Size 355M/L
Frame Material Cast Iron
Frequency 50 Hz
Height 885 mm
Horsepower 300 kW
IP Rating IP66
Mounting Method Foot
Insulation Class Class H
Number Of Poles 4 Pole
Output 220 kW
Phase 3 Phase
Rotation Both (CW and CCW)
Power Factor 0.84
Shaft Size 100 mm
Shaft Material Carbon Steel SAE 4140
Speed 1492 rpm
Service Factor 1.15
Starting Method Direct On Line
Temperature -20 to 40 deg C
Torque Rating 144 kgfm
Voltage 415 Volt AC
Width 956 mm
