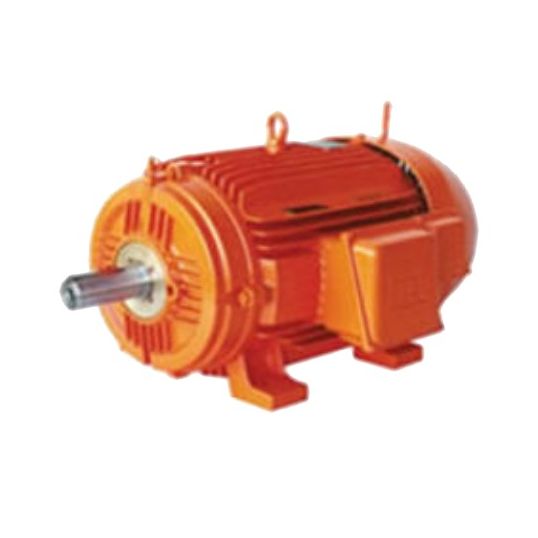

WEG Electric Motor Squirrel Cage Induction Mine Spec 2P 9.2kW 3Ph 415V 132M Frame Foot/Flange B35R(E) Mount

chevron-left

Description

chevron-down
Electric Motor Squirrel Cage Induction Mine Spec, 415 Volt AC, 16.0 Amp, 12.5 HP, 50 Hz, 3 Phase, 2925 rpm, 9.2 kW Output, 2 Pole, IC411-TEFC Enclosure, IP66, Frame: 132M, 38 mm Shaft, Rotation: Both (CW and CCW), Power Factor: 0.88, Service Factor: 1.15, Ball Bearing, Direct On Line Starting, Torque: 3.06 kgfm, Duty Cycle: S1, Foot/Flange B35R(E) Mounting, Insulation Class: H, Efficiency: 90.7%, Cast Iron Frame, Carbon Steel SAE 1040/45 Shaft, -20 to 40 deg C, 492 mm Length x 352 mm Width x 319 mm Height

Key Specifications

chevron-down
SKU
WEGLTE27PHEM
Brand
WEG
Range Name
WMining Series
Product Type
Motors SCIM Mine Spec

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • The W22 Mining motors can operate with high efficiency in the severest applications
  • They have special mechanical characteristics that ensure durability, mechanical strength, and robustness in every step of the mining process from extraction and transportation to the ore processing
  • Furthermore, they require low maintenance, significantly reducing undesirable downtime, and providing greater plant availability
  • Totally enclosed fan cooled
Standard Pack Size 1
UNSPSC Class 26101100
UOM EA
Vendor Product LTE27PHEM
Bearing Type Ball
Current 16.0 Amp
Duty Cycle S1
Efficiency 90.7%
Enclosure Type IC411-TEFC
Frame Size 132M
Frame Material Cast Iron
Frequency 50 Hz
Height 319 mm
Horsepower 12.5 kW
IP Rating IP66
Mounting Method Foot/Flange
Insulation Class Class H
Number Of Poles 2 Pole
Output 9.2 kW
Phase 3 Phase
Rotation Both (CW and CCW)
Power Factor 0.88
Shaft Size 38 mm
Shaft Material Carbon Steel SAE 1040/45
Speed 2925 rpm
Service Factor 1.15
Starting Method Direct On Line
Temperature -20 to 40 deg C
Torque Rating 3.06 kgfm
Voltage 415 Volt AC
Width 352 mm
