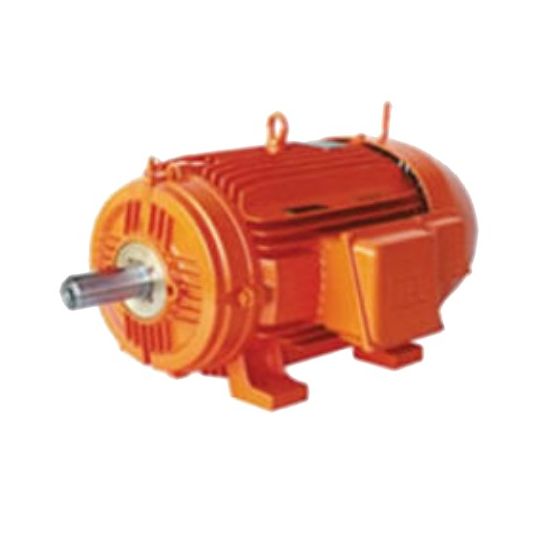

WEG Electric Motor Squirrel Cage Induction Mine Spec 6P 1.5kW 3Ph 415V 100L Frame Flange B5R(E) Mount

chevron-left

Description

chevron-down
Electric Motor Squirrel Cage Induction Mine Spec, 415 Volt AC, 3.57 Amp, 2 HP, 50 Hz, 3 Phase, 955 rpm, 1.5 kW Output, 6 Pole, IC411-TEFC Enclosure, IP66, Frame: 100L, 28 mm Shaft, Rotation: Both (CW and CCW), Power Factor: 0.71, Service Factor: 1.15, Ball Bearing, Direct On Line Starting, Torque: 1.53 kgfm, Duty Cycle: S1, Flange B5R(E) Mounting, Insulation Class: H, Efficiency: 82.5%, Cast Iron Frame, Carbon Steel SAE 1040/45 Shaft, -20 to 40 deg C, 380 mm Length x 265 mm Width x 244 mm Height

Key Specifications

chevron-down
SKU
WEGMTE12APHEM
Brand
WEG
Range Name
WMining Series
Product Type
Motors SCIM Mine Spec

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • The W22 Mining motors can operate with high efficiency in the severest applications
  • They have special mechanical characteristics that ensure durability, mechanical strength, and robustness in every step of the mining process from extraction and transportation to the ore processing
  • Furthermore, they require low maintenance, significantly reducing undesirable downtime, and providing greater plant availability
  • Totally enclosed fan cooled
Standard Pack Size 1
UNSPSC Class 26101100
UOM EA
Vendor Product MTE12APHEM
Bearing Type Ball
Current 3.57 Amp
Duty Cycle S1
Efficiency 82.5%
Enclosure Type IC411-TEFC
Frame Size 100L
Frame Material Cast Iron
Frequency 50 Hz
Height 244 mm
Horsepower 2 kW
IP Rating IP66
Mounting Method Flange
Insulation Class Class H
Number Of Poles 6 Pole
Output 1.5 kW
Phase 3 Phase
Rotation Both (CW and CCW)
Power Factor 0.71
Shaft Size 28 mm
Shaft Material Carbon Steel SAE 1040/45
Speed 955 rpm
Service Factor 1.15
Starting Method Direct On Line
Temperature -20 to 40 deg C
Torque Rating 1.53 kgfm
Voltage 415 Volt AC
Width 265 mm
