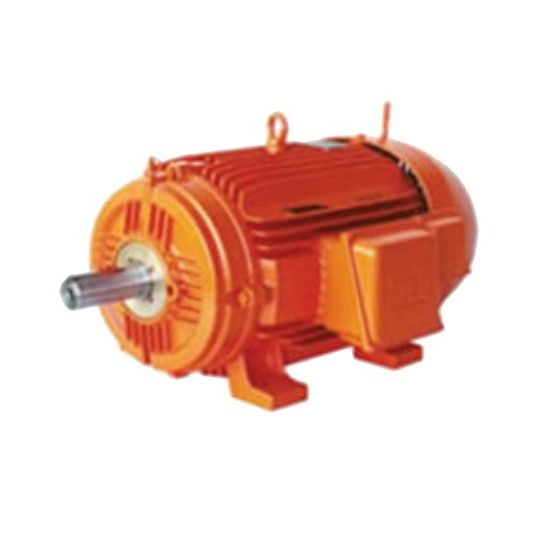

WEG Electric Motor Squirrel Cage Induction Mine Spec 2P 0.37kW 3Ph 415V 71 Frame Flange B5R(E) Mount

$WEG\WEG_W22.jpg$

Description

Electric Motor Squirrel Cage Induction Mine Spec, 415 Volt AC, 1.42/0.820 Amp, 50 Hz, 3 Phase, 2790 rpm, 0.37 kW Output, 2 Pole, IC411-TEFC Enclosure, IP66, Frame: 71, 14 mm Shaft, Rotation: Both (CW and CCW), Power Factor: 0.85, Service Factor: 1.15, Ball Bearing, Direct On Line Starting, Torque: 1.27 N/m, Duty Cycle: S1, Flange B5R(E) Mounting, Insulation Class: H, Efficiency: 76%, Cast Iron Frame, Carbon Steel SAE 1040/45 Shaft, -20 to 40 deg C, 276 mm Length x 210 mm Width

Key Specifications

SKU	WEGMTE3PHEM
Brand	WEG
Range Name	WMining Series
Product Type	Motors SCIM Mine Spec

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	The W22 Mining motors can operate with high efficiency in the severest applications They have special mechanical characteristics that ensure durability, mechanical strength, and robustness in every step of the mining process from extraction and transportation to the ore processing Furthermore, they require low maintenance, significantly reducing undesirable downtime, and providing greater plant availability Totally enclosed fan cooled
Standard Pack Size	1
UNSPSC Class	26101100
UOM	EA
Vendor Product	MTE3PHEM
Bearing Type	Ball
Current	1.42/0.820 Amp
Enclosure Type	IC411-TEFC
Efficiency	76%
Duty Cycle	S1
Frame	Size 71
Frame Material	Cast Iron
Frequency	50 Hz
Insulation Class	Class H
IP Rating	IP66
Mounting Method	Flange
Number Of Poles	2 Pole
Output	0.37 kW
Rotation	Both (CW and CCW)
Phase	3 Phase
Shaft Material	Carbon Steel SAE 1040/45
Power Factor	0.85
Service Factor	1.15
Shaft Size	14 mm
Speed	2790 rpm
Voltage	415 Volt AC
Temperature	-20 to 40 deg C
Starting Method	Direct On Line
Torque Rating	1.27 Nm
Width	210 mm
