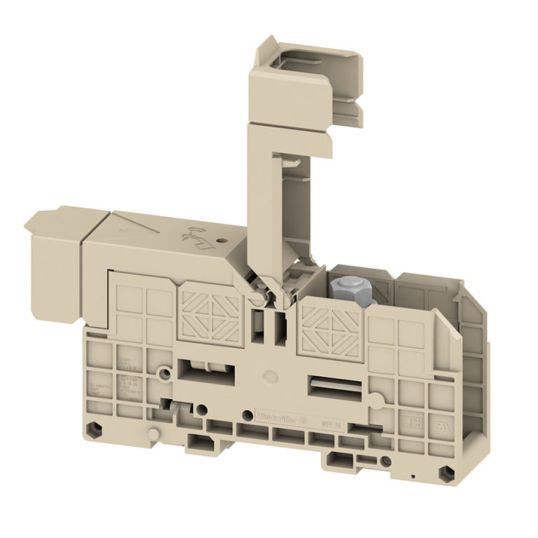

Weidmuller Feed Through Terminal WFF 70/AH 70mm 1000V 192A Bolt-Type Screw Threaded Stud Wemid Dark Beige

$Weidmuller\Weidmuller_1029400000.JPG$

Description

Feed Through Terminal Block, 70 mm, 1000 Volt, 192 Amp, 6-12 Nm Tightening Torque, 2 Connection Points, 1 Level, Bolt Screw Terminal, Snap In Mounting, Wemid Insulation, Dark Beige, -50 to 120 deg C, UL94 V0 Flammability, 132 mm Height, 31.8 mm Width, 61 mm Depth

Key Specifications

Barcode (EAN-13)	4008190149208
SKU	WEI1029400000
Brand	Weidmuller
Product Type	Termninal Blocks

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	5
UNSPSC Class	39121400
UOM	EA
Vendor Product	1029400000
Conductor Size	70mm
Colour	Dark Beige
Depth	61 mm
Current Rating	192 Amp
Insulation Material	Wemid
Flammability	UL94 V0
Height	132 mm
Mounting Method	Snap In
Number of Connection Points	2
Number of Levels	1
Temperature	-50 to 120 deg C
Terminal Type	Bolt Screw
Tightening Torque	6-12 Nm
Voltage Rating	1000 Volt
Width	31.8 mm
