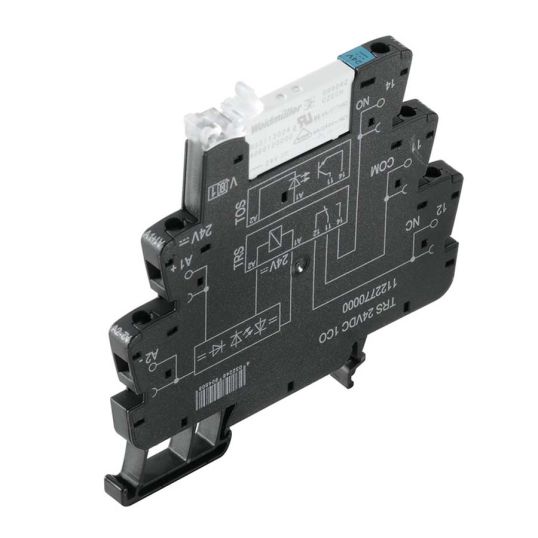

Weidmuller Klippon Term Series Relay Module 1CO 6A 24VDC 280mW 0.25-2.5mm Screw Clamp IP20
Description
Relay Module, 24 Volt DC Coil Voltage, 1 Changeover Configuration, Screw Terminal, IP20, -40 to 60 deg C, 89.6 mm Height, 6.4 mm Width, 87.8 mm Depth
Key Specifications
| Barcode (EAN-13) |
4032248904808
|
|---|---|
| SKU |
WEI1122770000
|
| Brand |
Weidmuller
|
| Product Type |
Relays
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 10 |
|---|---|
| UNSPSC Class | 39121500 |
| UOM | EA |
| Vendor Product | 1122770000 |
| Contact Configuration | 1 Changeover |
| Height | 89.6 mm |
| Depth | 87.8 mm |
| IP Rating | IP20 |
| Operating Coil Voltage | 24 Volt DC |
| Temperature | -40 to 60 deg C |
| Terminal Connection | Screw |
| Width | 6.4 mm |
