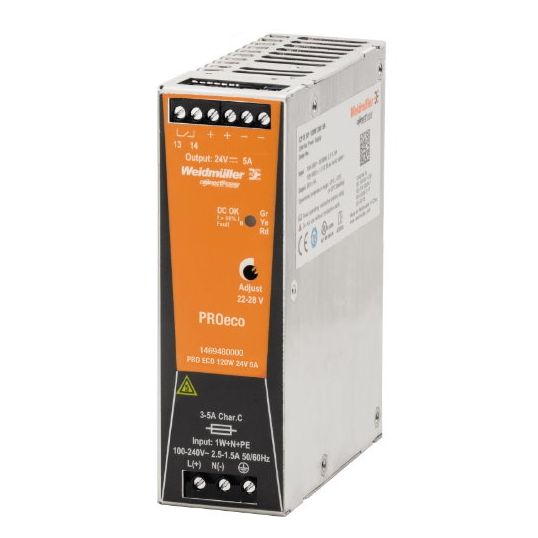

Weidmuller Klippon Power Supply DIN Rail Mount 1Ph In 100-240V Out 24VDC 120W 5A

Description

Power Supply, 100-240 Volt AC Input Voltage, 24 Volt DC Output Voltage, 5 Amp, 120 Watt Output, 47/63 Hz, 1 Phase Phase, >0.5 at 230 Volt AC/>0.53 at 115 Volt AC Power Factor, Screw Connection, DIN Rail Mounting, IP20, Class I Insulation, LED Display, 87% Efficiency, -25 to 70 deg C, 125 mm Height, 40 mm Width, 100 mm Depth

Key Specifications

Barcode (EAN-13)	4050118275476
SKU	WEI1469480000
Brand	Weidmuller
Product Type	Power Supplies

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121000
UOM	EA
Vendor Product	1469480000
Connection Type	Screw
Current	5 Amp
Depth	100 mm
Display	LED
Efficiency	87%
Frequency	47/63 Hz
Height	125 mm
Input Voltage	100-240 Volt AC
Insulation	Class I
IP Rating	IP20
Mounting Method	DIN Rail
Output Voltage	24 Volt DC
Output Rating	120 Watt
Phase	1 Phase
Power Factor	>0.5 at 230 Volt AC/>0.53 at 115 Volt AC
Temperature	-25 to 70 deg C
Width	40 mm
