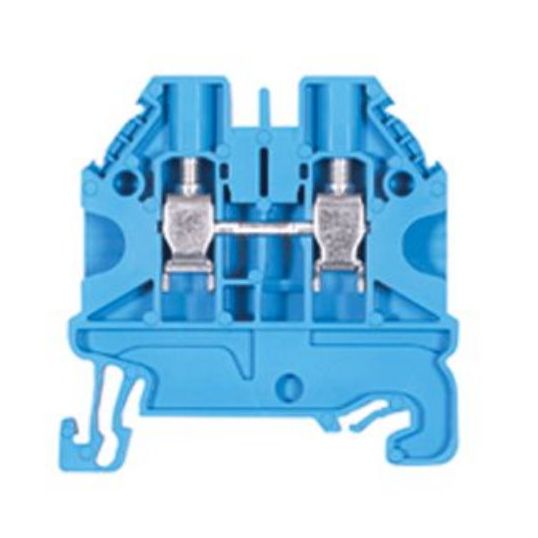

Wieland Rail Terminal Block Screwed 2 Wire 1 Level 6mm Blue Thermoplastic

$Wieland\WIE_58.506.0055.6.jpg$

Description

Rail Terminal Block, 1000 Volt, Rated Surge Voltage: 8 kV, 41 Amp, 6mm Conductor, 2 Conductors, Wire Strip Length: 11 mm, Tightening Torque: 1.2 N/m, Wiring Format: 2 Conductor Through, 1 Level, Screw Terminal, TS 35 DIN Rail Mount, Insulation Material: Thermoplastic, Blue, Flammability: V0, Height: 48 mm, 48 mm Width, 8 mm Depth

Key Specifications

SKU	WIE58.506.0055.6
Brand	Wieland
Range Name	Selos
Product Type	Rail Terminal Blocks

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	39121400
UOM	EA
Vendor Product	58.506.0055.6
Colour	Blue
Conductor Size	6.0mm
Current Rating	41 Amp
Depth	8 mm
Height	48 mm
Flammability	V0
Insulation Material	Thermoplastic
Mounting Method	TS 35 DIN Rail
Number of Conductors	2
Number of Levels	1
Rated Surge Voltage	8 kV
Voltage Rating	1000 Volt
Terminal Type	Screw
Tightening Torque	1.2 Nm
Width	48 mm
Wire Strip Length	11 mm
Wiring Format	2 Conductor Through
