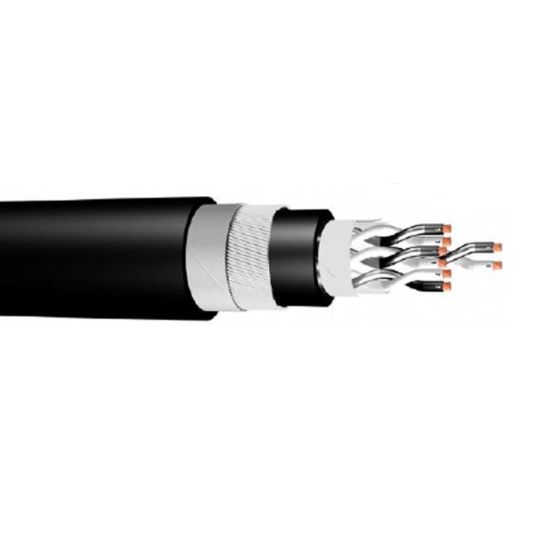

WWC Machlink 110 Instrumentation Cable Armoured 2 Pair Overall Screened 1.5mm PVC/SWA/PVC Black
Description
Instrumentation Cable Armoured, 1.5 mm, Class 2 Annealed Copper, 110 Volt AC/150 Volt DC, 2 Pair, 7/0.5 mm Strands, Overall Screened Screen, 10 mm Bedding Diameter, 14.8 mm Overall Diameter, 280 mm During Installation/186 mm After Installation Bend Radius, 0.4 mm Insulation Thickness, 13.6 Ohm/km Conductor Resistance, 140 MOhm/km Insulation Resistance, 100% Screen Coverage, Aluminium Foil/Polyester Tape Screen, Galvanised Steel Wire Armour, Black/White/Red Numerals Core, V-90 PVC Insulation, 5V-90 PVC Sheath, Black Sheath, -25 to 90 deg C, AS/NZS 1125 AS/NZS 3808 AS/NZS 1660.5.6 AS/NZS 1660.5.1 UL 2464
Key Specifications
| SKU |
WWC5502
|
|---|---|
| Brand |
WWC
|
| Range Name |
Machlink Type 110
|
| Product Type |
Instrumentation Cable Armoured
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 5502 |
| Armour Material | Galvanised Steel Wire |
| Bedding Diameter | 10 mm |
| Bend Radius | 280 mm During Installation/186 mm After Installation |
| Conductor Resistance | 13.6 Ohm/km |
| Conductor Size | 1.5 mm |
| Core Colours | Black/White/Red Numerals |
| Conductor Type | Class 2 Annealed Copper |
| Insulation Material | V-90 PVC |
| Insulation Resistance | 140 MOhm/km |
| Insulation Thickness | 0.4 mm |
| Number of Pairs | 2 Pair |
| Overall Diameter | 14.8 mm |
| Screen Coverage | 100% |
| Screen Format | Overall Screened |
| Screen Material | Aluminium Foil/Polyester Tape |
| Sheath Colour | Black |
| Sheath Material | 5V-90 PVC |
| Standards | AS/NZS 1125 AS/NZS 3808 AS/NZS 1660.5.6 AS/NZS 1660.5.1 UL 2464 |
| Stranding | 7/0.5 mm |
| Temperature | -25 to 90 deg C |
| Voltage | 110 Volt AC/150 Volt DC |
