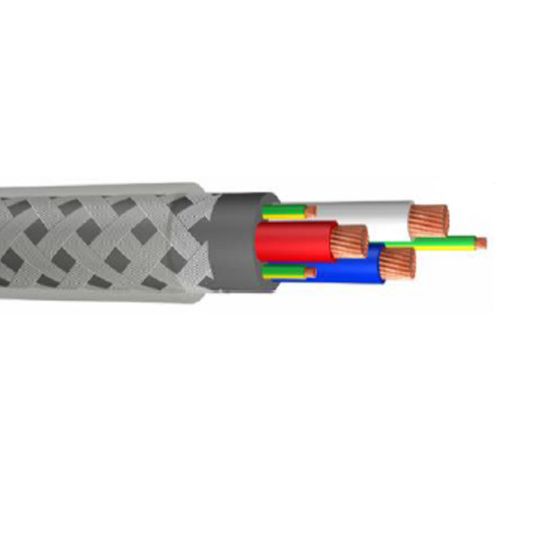

WWC Conflex Series 1 Flexible Cable VSD EMC Screened 3 Core & 3 Earth 95 mm 0.6/1kV PVC/Tinned Copper Braid/PVC Clear
Description
VSD/EMC Cable, 95 mm, Class 5 Stranded Annealed Copper, 0.6-1 kV, 3 Core + 3 Earth, 46.3 mm Overall Diameter, 39 mm Bedding Diameter, 16 mm Earth Conductor, 389 mm During Installation/292 mm After Installation Bend Radius, 1.6 mm Insulation Thickness, 0.206 Ohm/km Conductor Resistance, Tinned Copper Braid Screen, Red/Blue/White/Green/Yellow Core, V-75 PVC Insulation, V-75 PVC Sheath, Clear Sheath, -25 to 75 deg C, AS/NZS 5000.1 AS/NZS 3808 AS/NZS 1660.5.1 IEC 60332-3-24
Key Specifications
| SKU |
WWC9495
|
|---|---|
| Brand |
WWC
|
| Range Name |
Conflex
|
| Product Type |
VSD/EMC Cable
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 9495 |
| Bedding Diameter | 39 mm |
| Bend Radius | 389 mm During Installation/292 mm After Installation |
| Conductor Resistance | 0.206 Ohm/km |
| Conductor Size | 95 mm |
| Conductor Type | Class 5 Stranded Annealed Copper |
| Core Colours | Red/Blue/White/Green/Yellow |
| Earth Conductor Size | 16 mm |
| Insulation Material | V-75 PVC |
| Insulation Thickness | 1.6 mm |
| Number of Cores | 3 Core + 3 Earth |
| Overall Diameter | 46.3 mm |
| Screen Material | Tinned Copper Braid |
| Sheath Colour | Clear |
| Sheath Material | V-75 PVC |
| Standards | AS/NZS 5000.1 AS/NZS 3808 AS/NZS 1660.5.1 IEC 60332-3-24 |
| Temperature | -25 to 75 deg C |
| Voltage | 0.6-1 kV |
