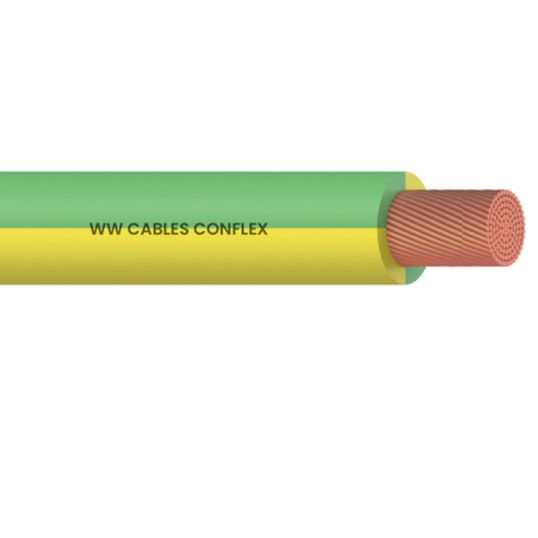

WWC 35mm Building Wire Green/Yellow 500mtr

chevron-left

Description

chevron-down
Flex Wire, 35 mm, Class 5 Annealed Copper, 0.6-1 kV, 8.59 mm Nominal Diameter, 11 mm Overall Diameter, 500 mtr Length, 69 mm During Installation/46 mm After Installation Bend Radius, 0.554 Ohm/km Conductor Resistance, V-90 PVC Insulation, Green/Yellow Insulation, -25 to 75 deg C, AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1 AS/NZS 1660.5.6

Key Specifications

chevron-down
SKU
WWCE5V35
Brand
WWC
Product Type
Building Wire

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Standard Pack Size 500
UNSPSC Class 26121614
UOM MTR
Vendor Product E5V35
Conductor Size 35 mm
Bend Radius 69 mm During Installation/46 mm After Installation
Conductor Resistance 0.554 Ohm/km
Conductor Type Class 5 Annealed Copper
Insulation Colour Green/Yellow
Insulation Material V-90 PVC
Nominal Diameter 8.59 mm
Overall Diameter 11 mm
Standards AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1 AS/NZS 1660.5.6
Temperature -25 to 75 deg C
Voltage 0.6-1 kV
