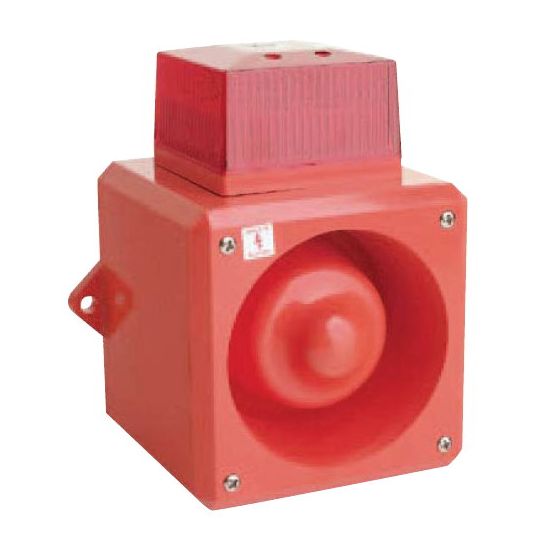

Yodalarm YL5 Electronic Alarm Sounder and Strobe Beacon 110 dB at 1 m 24 VDC Red Housing Red Lens
Description
Alarm Sounder & Beacon, 24 Volt DC, 67 mA Sounder/250 mA Beacon, 110 dB at 1 mtr, 32 Tones, Xenon, 14 cd, 5 J Flash Energy, 60 fpm Flash Rate, 2 Stage Alarm, 2 x 20 mm Connection, IP65, Flame Retardant ABS, Red Housing/Red Lens, -25 to 55 deg C, 169 mm x 134 mm
Key Specifications
| SKU |
YOLYOD5121R
|
|---|---|
| Brand |
Yodalarm
|
| Product Type |
Audible Warning Devices
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 46171600 |
| UOM | EA |
| Vendor Product | YOD5121R |
| Alarm | 2 Stage |
| Colour | Red Housing/Red Lens |
| Current | 67 mA Sounder/250 mA Beacon |
| Connection Type | 2 x 20 mm |
| Flash Energy | 5 J |
| Dimensions | 169 mm x 134 mm |
| Flash Rate | 60 fpm |
| IP Rating | IP65 |
| Lamp Type | Xenon |
| Light Output | 14 cd |
| Material | Flame Retardant ABS |
| Sound Frequency | 32 Tones |
| Sound Level | 110 dB at 1 mtr |
| Temperature | -25 to 55 deg C |
| Voltage | 24 Volt DC |
